Industrial Standalone Ethernet Switches
Smart and cost-effective solutions for modern networks.

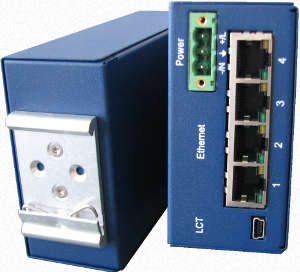

MiniFlex Managed Switch DINrail Unit
MF-SW-RAIL-4Eth-xxx,V1
MiniFlex Managed Switch DINrail Unit has 4x 10/100Base-TX interfaces and acts as Layer 2 Managed Switch.
MiniFlex Managed Switch supports RSTP protocol and can be used in a ring carrying Ethernet or Serial data.
It also supports Classes of Service and can limit the ingress bandwidth of a port.
The Firmware of MiniFlex Managed Switch has the same features as Orion3 and MiniFlex modems. Command Line interface and WEB Page layout is similar to our Orion3 product family too. This simplicity allows a service persons who never deal with Ethernet Switches before but configured the SHDSL modem to perform required actions with easy.
MF-GSW-RAIL-4Eth-xxx,V1
MiniFlex Managed Switch DINrail Unit has 4x 10/100/1000Base-TX interfaces and acts as Layer 2 Managed Gigabit Switch.
Like the previous version, it supports RSTP protocol and can be used in a ring carrying Ethernet or Serial data.
Classes of Services are supported as well.
MiniFlex Dual Fiber Optic-uplink Dinrail Switch
MF-FOM-RAIL2N-2Eth-xxx, V1
MiniFlex Dual-SFP Ethernet Switch allows Ethernet data transmission over single- or multi-mode fiber, depending on a SFP module installed into it.
MiniFlex Dual-FOM uses Ethernet 100Base-FX standard for data encapsulation therefore it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX interface from other vendors.
The MiniFlex Dual-FOM available in DC and AC versions
MiniFlex Dual Giga Fiber Optic-uplink Dinrail Switch
MF-GFOM-RAIL2N-2Eth-xxx, V1
MiniFlex Dual-SFP Gigabit Ethernet Switch allows Ethernet data transmission over single- or multi-mode fiber, depending on a SFP module installed into it.
MiniFlex Dual Giga-FOM supports both 100Base-FX and 1000Base-X SFP modules and it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX or 1000Base-X interface from other vendors.
The MiniFlex Dual Giga-FOM available in DC and AC versions

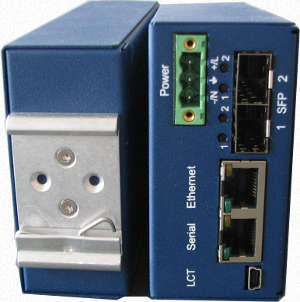

MiniFlex Dual Fiber Optic Switch with Serial Interface
MF-FOM-RAIL2N-SER/Eth-xxx, V1
MiniFlex Dual-SFP Ethernet Switch with Serial Interface allows Ethernet and Serial (RS-232/422/485) data transmission over single- or multi-mode fiber, depending on a SFP module installed into it.
MiniFlex Dual-FOM uses Ethernet 100Base-FX standard for data encapsulation therefore it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX interface from other vendors.
Serial data (RS-232/422/485) can be transmitted in Point-to-Point, Point-to-Multipoint or in Broadcast topologies. Thanks to the support of RSTP protocol the Serial data can be distributed even over Ring networks.
The MiniFlex Dual-SFP with Serial interface available in DC and AC versions
MF-FOM-RAIL2N-2V24-xxx, V1
MiniFlex Dual-SFP Ethernet Switch allows transmission of two Seial interfaces (RS-232/V.24/V.28) over single- or multi-mode fiber, depending on a SFP module installed into it.
MiniFlex Dual-FOM uses Ethernet 100Base-FX standard for data encapsulation therefore it is compatible with other FlexDSL products with fiber-optic interface and with 100Base-FX interface from other vendors.
Serial data 2x (RS-232/V.24/V.28) can be transmitted in Point-to-Point, Point-to-Multipoint or in Broadcast topologies. Thanks to the support of RSTP protocol the Serial data can be distributed even over Ring networks.
The MiniFlex Dual-FOM with Serial interface available in DC and AC versions
GigaFlex Managed DINrail Unit
GF-GSW-RAIL-10Eth-24V, V96
GigaFlex Managed Gigabit Switch has 8x 10/100/1000Base-TX interfaces and 2x SFP cages and acts as Layer 3 Managed Switch.
It supports Spanning Tree Protocols as well as ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network resiliency. The integrated routing engine supports layer 3 protocols such as OSPF and is capable for Network Adress Translation (NAT)
The FlexDSL GigaFlex unit was developed having security aspects in mind. Secured management protocols such as SSH, SFTP, HTTPS and SNMPv3 are implemented. It also supports RADIUS and 802.1x authentication for terminal devices. With available separate software license, the GigaFlex unit can be transformed into an IPSec-enabled VPN gateway or can encrypt the traffic at wire speed on MAC-layer with MACSec protocol.
GF-GSW-RAIL-10Eth-2I2O/2SER-PoE-24V,V95
GigaFlex Managed Gigabit Switch has 8x 10/100/1000Base-TX interfaces and 2x SFP cages and acts as Layer 3 Managed Switch.
In addition it carries 2x RS-232/422/485 Interfaces and 2x Digital Inputs & Outputs.
It supports Spanning Tree Protocols as well as ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network resiliency. The integrated routing engine supports layer 3 protocols such as OSPF and is capable for Network Adress Translation (NAT).
GigaFlex unit distributes Ethernet data from modern SCADA systems and controllers as well as Serial RS-232/422/485 data together with Relay contacts from legacy systems. The modern Ethernet and legacy Serial interfaces work in parallel. The application data occupies defined bandwidth, therefore different data-sources do not influence each other.
