Power Supplies, Cables and Adapters
Accessories for Orion1, Orion2, Orion3 and MiniFlex modems.
Power Supplies
![FG-PA48-T](images/fg-pa48-t.jpg)

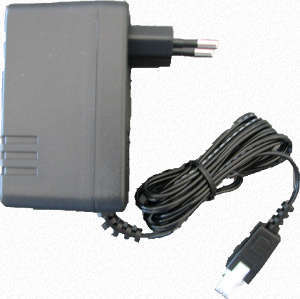

FG-PA48-T
The FG-PA48-T power supply designed for powering Orion1, Orion2 or Orion3 Table-top modems from 220VAC power.
Parameter | Value |
---|---|
Nominal Input Voltage: | 230VAC ±10%, 50Hz |
Nominal Output Voltage: | 48VDC ±10% |
Nominal Output Load: | 300mA |
DC Output Connector: | Molex 39-01-2040 |
DC cable length: | 1.8m |
Operating Temperature: | -10 to +60°C |
Size of Housing: | 82x55x49mm |
Weight: | 0.58 kg |

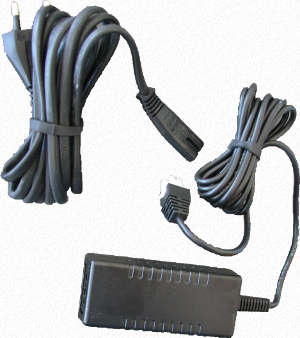

FG-PA48-G
![FG-PA48-G](images/fg-pa48-g.jpg)
The FG-PA48-G power supply designed for powering Orion1, Orion2 or Orion3 Table-top modems from 220VAC power. The AC cable can be unplugged and changed with USA or UK or Australia AC plug type.
Parameter | Value |
---|---|
Nominal Input Voltage: | 100-240VAC ±10% 47-63Hz |
Nominal Output Voltage: | 48VDC ±10% |
Nominal Output Load: | 350mA |
AC Input Connector: | IEC 320 C8 |
DC Output Connector: | Molex 39-01-2040 |
AC cable length: | 1.8m |
DC cable length: | 1.7m |
Operating Temperature: | -20 to +60°C |
Size of Housing: | 96x52x34mm |
Weight: | 0.27 kg |

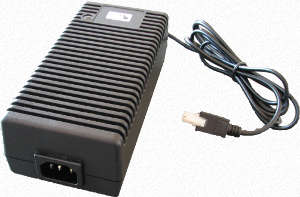

FG-PA48/1A
![FG-PA48/1A](images/fg-pa48_1A.jpg)
The FG-PA48/1A power supply designed for powering Orion1, Orion2 or Orion3 Table-top modems from 220VAC power. It has enough output current and can be used to power FG-UTT1-48 or even FG-UTT4-48A enclosures.
Parameter | Value |
---|---|
Nominal Input Voltage: | 100-240VAC ±10% 47-63Hz |
Nominal Output Voltage: | 48VDC ±10% |
Nominal Output Load: | 1100mA |
AC Input Connector: | IEC 320 |
DC Output Connector: | Molex 39-01-2040 |
AC cable length: | Not included |
DC cable length: | 1.8m |
Operating Temperature: | -20 to +60°C |
Size of Housing: | 165x80x56mm |
Weight: | 0.47 kg |
FG-PWR-14
![FG-PWR-14](images/fg-pwr-14.jpg)
The FG-PWR-14 is a redundant power system for 19" rack with up to 110 Watts output power. It has 14x 48VDC connections to power multiple units and dual redundant AC power input.
Parameter | Value |
---|---|
Nominal Input Voltage: | 100-240VAC ±10% 47-63Hz |
Nominal Output Voltage: | 48VDC ±10% |
Nominal Output Load: | 2300mA on 14 connections |
AC Input Connector: | IEC 320 |
DC Output Connector: | Terminal Block, AWG 12-22 |
Alarm Output: | Relays 120VAC/24VDC 1A |
Operating Temperature: | -20 to +60°C |
Size of Housing: | 483x170x44mm |
Weight: | 2.0 kg |
Cables and Adapters
![Cables and Adapters](images/cab_adapt.jpg)
FlexDSL provides full range of connection cables for its products. Cables for E1 G.703, Nx64 (V.35/V.36/X.21), RS-232/485 interfaces are available. 120Ohm/75Ohm baluns are available as well. Please refer to detailed cable specification in the download section.
