MiniFlex IP Multiplexer
Flexible solutions for mission-critical applications.
MiniFlex Rack with build-in 12-Port Switch for 10 Linecards
MF-MR2N-SW-12Eth,V2
![MiniFlex Rack](images/mf-swrack10.jpg)
The MiniFlex IP Multiplexer allows Utilities (Railways, Gas/Oil distribution, Roads, Offshore) smooth migration from existing TDM and Serial based networks (E1, RS-232/422/485) to packet based (Ethernet and IP).
The MiniFlex Core Switch based on high-performance System on Chip (SoC) that has 24.8 Gbps non-blocking switching matrix. The SoC supports Classes of Service (CoS) with 8 queues by hardware. The SoC has anti DDoS protection as well and supports Access Control Lists.
10 expansion slots of the multiplexer designed for tributary cards with Serial interfaces, FXO/FXS/VF ports or for Interface Extenders over Fiber or Copper.
MF-FOM-SRL or MF-FOM-SR2L line cards allow connection of remote locations over single- or multi-mode fiber, depending on a SFP module type. MF-PAM line cards transmit data traffic to the remote location over one or two copper pairs using industry-proven SHDSL.bis Extended technology (TC-PAM4/8/16/32/64/128)
The unique combination of legacy interfaces, high-performance switching core and interface extenders in one platform makes MiniFlex IP Multiplexer an unbeatable platform for mission-critical applications.
The second version of the MiniFlex Rack supports 10x 10/100/1000Base-TX Ethernet interfaces heading to the tributary cards.
Note: Power Supply MF-PS48,V1 or MF-PS110/230,V1 or MF-PS12,V1 must be ordered separately.

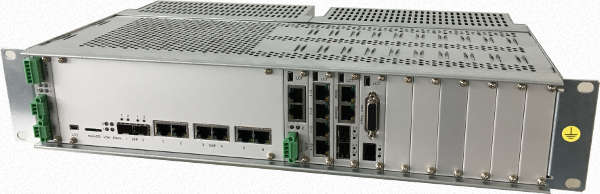

MiniFlex Rack with build-in 8-Port Switch for 10 Linecards
MF-MR2N-SW-8Eth,V2
![MiniFlex Rack](images/mf-sw8rack10.jpg)
The second version of MiniFlex Rack with integrated 8-Port Switch supports the same tributary cards as the MF-MR2N-SW-12Eth,V2 model. It supports 10x 10/100/1000Base-TX Ethernet interfaces heading to the tributary cards.
Unlike the MF-MR2N-SW-12Eth,V2 model, the integrated switch of MF-MR2N-SW-8Eth,V2 Rack can be managed through WEB interface and supports configuration save and restore on SD Card.
Note: Power Supply MF-PS48,V1 or MF-PS110/230,V1 or MF-PS12,V1 must be ordered separately.
MiniFlex Rack for 10 Linecards
MF-MR2N,V2
![MiniFlex Rack](images/mf-rack10.jpg)
The MiniFlex Rack available without core switching/management card as well. All Tributary cards can be connected one with another using external third-party Ethernet switch or directly by Ethernet patch-cords.
Note: Power Supply MF-PS48,V1 or MF-PS110/230,V1 or MF-PS12,V1 must be ordered separately.
MiniFlex FlatRack for 5 Linecards with build-in Switch
MF-FR05N-SW-2Eth,V1
![MiniFlex FlatRack](images/mf-fr05n.jpg)
The FlexDSL MiniFlex FlatRack appears a part of the FlexDSL MiniFlex platform. The 5-slot FlexDSL MiniFlex FlatRack is designed for a 19” rack and has a height close to 1/2U (24mm). This allows to occupy only 1U (43.6mm) in the rack together with cooling space.
The MiniFlex FlatRack support MiniFlex SHDSL line cards that can exchange data through build-in aggregation switch connected to Backplane.
Note: Power Supply MF-PS48-FR05N,V1 or MF-PS230-FR05N,V1 must be ordered separately.
MiniFlex FlatRack for 5 Linecards without build-in Switch
MF-FR05N,V1
![MiniFlex FlatRack](images/mf-fr05n_nosw.jpg)
If build-in Switch is not required the MF-FR05N,V1 model can be used instead.
Note: Power Supply MF-PS48-FR05N,V1 or MF-PS230-FR05N,V1 must be ordered separately.
Tributary Line Cards
For supported Line Card options click on the button below.
