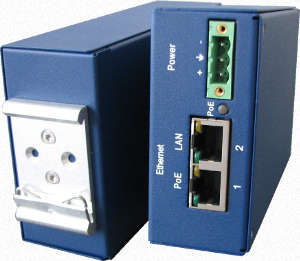

MiniFlex PoE (Power over Ethernet) DINrail Unit
The MiniFlex PoE (Power over Ethernet) DINrail Unit has two Ethernet ports and supports the IEEE 802.3af standard with 15.4W output power on one of them.
The MiniFlex PoE DINrail Unit works either in IEEE 802.3af PoE Mode A that defines so-called "Phantom Powering" through signal wires, or in IEEE 802.3af PoE Mode B that uses spare pairs 4/5 and 7/8 in Ethernet connector. Mode A and Mode B are jumper-configurable.
The MiniFlex PoE DINrail Unit accepts external -18 ...-72VDC power and supports extended temperature option -25 to +80°C.
