The FlexDSL Orion 2/3 SHDSL.bis product family includes a unique range of SHDSL repeaters supporting TC-PAM4/8/16/32/64 and even TC-PAM128 line coding. They are interoperable with FlexDSL Orion, Orion2 and Orion3 modems as well as with MiniFlex Ethernet Extenders.
FlexDSL Telecommunications AG provides repeater firmware adaptation for the purpose of obtaining interoperability with products from other SHDSL manufacturers.Contact Us
FlexDSL Orion 2/3 SHDSL.bis Standalone Repeater
The most common FlexDSL Orion 2/3 Repeater extends single or dual pair SHDSL and SHDSL.bis. It offers Ethernet add/drop functionality (10/100BT, Bridge) and comes in a plastic desktop housing.
The repeater can be powered locally or remotely over the DSL line. Therefore it is configurable as power “end-point” terminating power transmitted over the DSL line, or power “pass-through”, passing power to another repeater or CPE on the DSL line.
The Orion 2/3 SHDSL.bis Repeater comes in a robust blue (RAL 5003) desktop plastic housing with a dark gray (RAL 7001) LED sticker with black labeling. The housing is stackable and was designed for in-door use only.

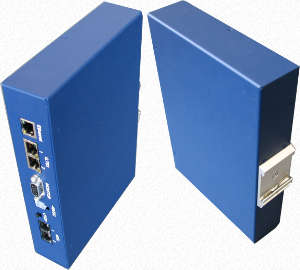

FlexDSL Orion 2/3 SHDSL.bis DIN Rail IP30 Repeater
When Rail mounting is required the FlexDSL Orion 2/3 Repeater with DIN Rail case is the right choice. It offers Ethernet add/drop functionality (10/100BT, Bridge) over single SHDSL or SHDSL.bis pair and comes in a blue (RAL 5003) powder coated metal housing (IP30 protection class) with white labeling.
The repeater can be powered locally or remotely over the DSL line. Therefore, it is configurable as power “endpoint” terminating power transmitted over the DSL line or power “pass-through” passing power to another repeater or remote CPE device.
FlexDSL Orion 2/3 SHDSL.bis IP67 Repeater
In case if higher protection level is required the IP67 SHDSL or SHDSL.bis Repeater can be used. The IP67 Repeater offers same service as repeater in DIN Rail enclosure but more resistant to the environment influence.
IP67 protection class allows repeater operation 1 meter under water within 30 minutes. Therefore it is not designed for under-ground locations, but can be used outside the buildings or on the industrial objects.
FlexDSL Telecommunications AG produce IP67 Repeaters either in polycarbonate plastic enclosure, or in various aluminum housings.
FlexDSL Orion 2/3 SHDSL.bis IP68 Repeater
The SHDSL or SHDSL.bis IP68 Repeater designed for long-term operation in the ground.
This IP68 enclosure is made of the same materials as the cables, meaning wherever a cable is used an IP68 enclosure can also be used. The high-end polyethylene is particularly resistant to alkaline earths, salt water, fungal and putrefaction bacteria. Thanks to the ingenious design and compact construction the IP68 enclosure is absolutely watertight. Consequently, they are ideal for direct use in subsoil, underground or aerial applications.
